Quality Products Manufactured in the USA

Features:

• Panel Widths: 12” (standard), other widths by quote
• Panel Attachment: Screw Fin Attachment / Internal seam
• Panel Base Metal: Galvalume© 24ga. (standard), Aluminum .025/ .032/ .040 by quote, Copper 16 oz / 20 oz by quote
• Profile: V, Flat or Pencil ribs (optional), vented or solid (optional)
• Finish: Standard SpectraLume© 70% Kynar 500 or SMP Finish
• Primary Uses: Residential, Commercial, Light Commercial projects

 The ASP SP-300 panel is a 1” deep structural soffit/wall panel. Its clean look and flush profile is eye appealing in nature and simple to install.

Specifications:

• Architectural  Detail Capabilities
• Flush Seam
• Structural
• Weathertightness Warranties

 Features:

• Panel Widths: 12” and 16” (standard), other widths by quote
• Panel Attachment: Concealed clips
• Panel Base Metal: Galvalume© 24ga. (standard), .032 Aluminum, Copper, Galvanized by Quote.
• Profile: Smooth
• Finish: Standard SpectraLume© 70% Kynar 500
• Primary Use: Concave and Convex curved roof projects

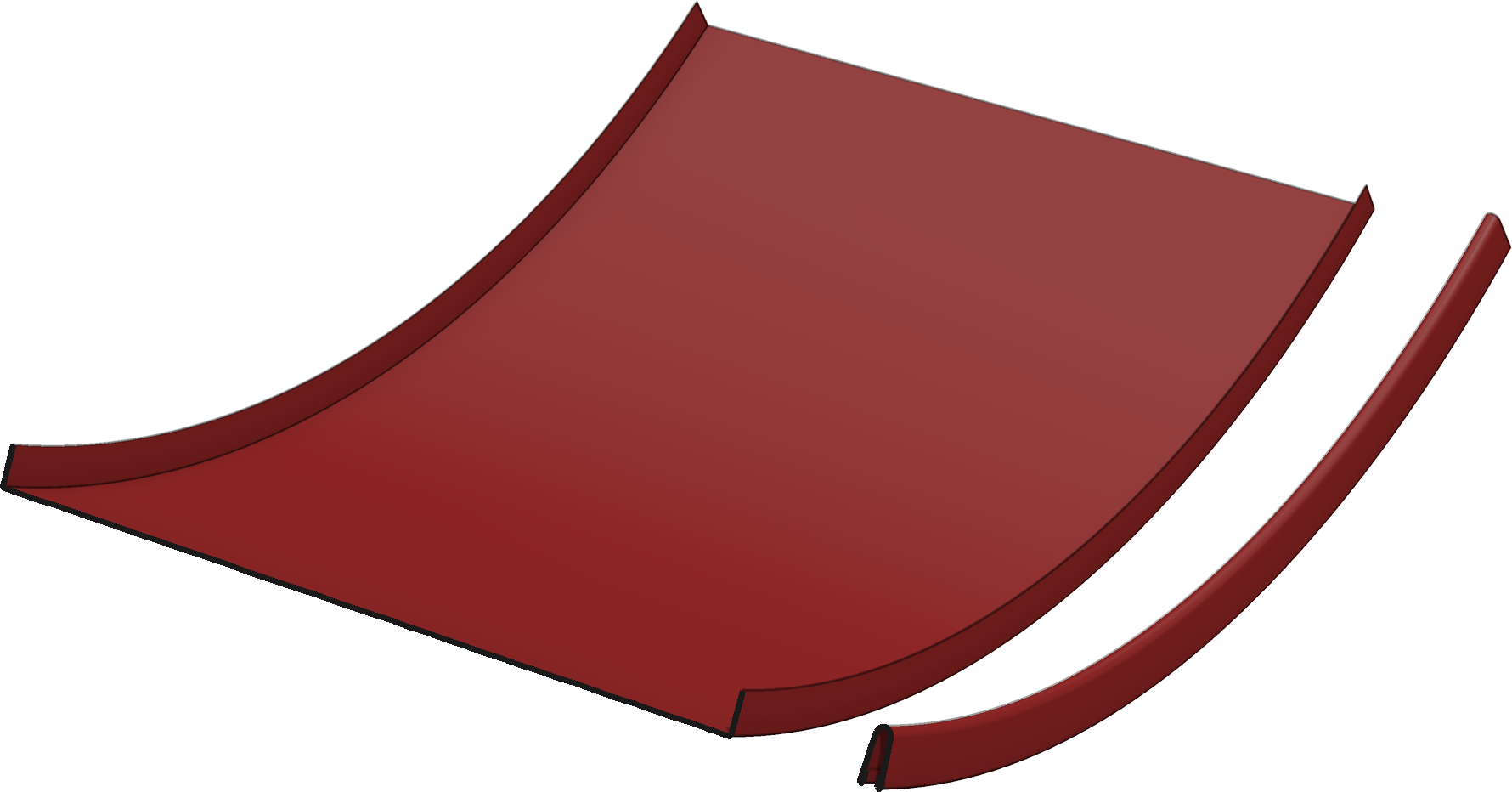

 The ASP SBLC is a versatile panel that can be utilized as a standard straight panel or curved convex for barrel roofs or curved concave for curved slopes such as are found on many bay or bow windows. This is strictly an architectural roof system that must be applied to a solid substrate. Heavy 24ga Galvalume© with a Spectralume© finish gives these panels eye appeal and long life with little or no maintenance.

Specifications:

• Architectural  Detail Capabilities
• Snap-Lock Seam
• Weathertightness Warranties

 Features:

• Panel widths: 1” (MLC-100): 17” and 21” standard, other widths by quote 1-1/2” (MLC-150): 16” and 20” standard, other widths by quote
• Panel Attachment: Concealed fixed or expansion clips, Mechanically locked seam
• Panel Base Metal: Galvalume© 24ga. (standard), Aluminum, Copper, Galvanized by quote
• Profile: Smooth
• Finish: Standard SpectraLume© 70% Kynar 500
• Primary Use: May only be curved for convex (barrel) applications

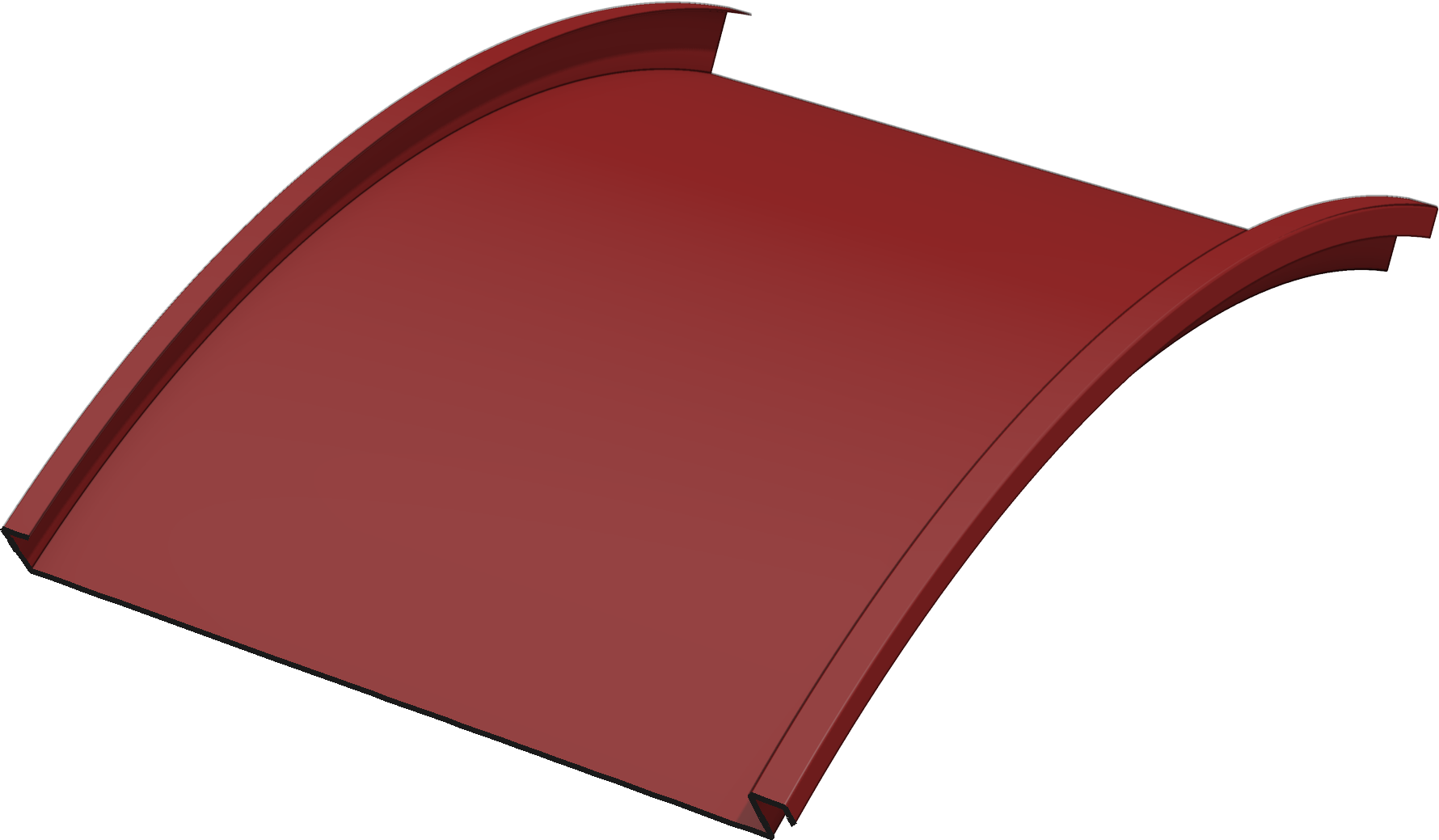

 The MLC-100 and MLC-150 mechanically locked panel takes the traditional double lock seam panels and allows them to be installed on barrel type roofs. Heavy 24ga Galvalume© with a Spectralume© finish gives these panels eye appeal and long life with little or no maintenance. The design of the legs allow simple installation of snow retention systems, signage and other roof mounted products utilizing seam secured brackets.

Specifications:

• Architectural  Detail Capabilities
• Mechanical Seam
• Weathertightness Warranties

 Features:

• Panel Widths: 14”, 16” and 18”
• Minimum Slope: 1/2” / 12”
• Panel Attachment: Concealed high or low fixed or expansion clips, Mechanically locked seam
• Panel Base Metal: Galvalume© (standard), Aluminum, Copper, Galvanized by quote
• Galvalume Gauge: 24 gauge (standard), 22ga. by quote
• Profile: Smooth, Optional Flat Ribs, Pencil Ribs or Striations
• Sealant: Optional Non-Skinning Isobutyl
• L.: Based on 24ga. steel 16” wide or narrower panel
• Primary Use: Commercial and Light Commercial projects

The ASP ML-200 panel is designed for architectural or structural application over solid decks or open purlins. The ML-200 has a 2” high mechanical lock profile and a variety of textures that can be added to the panel such as ribs or striations. Heavy 24ga Galvalume© with a Spectralume© finish gives this easily installed panel eye appeal and long life with little or no maintenance. The design of the legs allows simple installation of snow retention systems, signage and other roof mounted products utilizing seam secured brackets.

ASP, Inc. has completed immense performance panel testing for the 24ga Galvalume© ML-200 profile. This ASP panel will meet or exceed all architectural specifications.

 Testing:

• ASTM E-1680-95 Air Leakage Test
• ASTM E-1646-95 Water Penetration Test
• ASTM E-1592 Standard Test Method for Structural Performance of Sheet Metal Roof and Siding Systems by Uniform Static Air Pressure Difference
• ASTM E-283-04 Air Leakage Test
• ASTM E-331-00 Water Penetration Test

Specifications:

• Architectural  Detail Capabilities
• ASTM E-330 Tested
• U-90 Tested
• Structural
• Mechanical Seam
• Weathertightness Warranties

  Features:

• Panel Widths: ML-100 (1”) 17” & 21” standard, ML-150 (1-1/2”) 16” & 20” standard
• Minimum Slope: 3” / 12”
• Panel Attachment: Internal Seam Clips: Fixed or Expansion Available Mechanically Locked Seam
• Panel Base Metal: Galvalume© (standard), Aluminum, Copper, Galvanized by quote
• Profile: Smooth (standard), or Striations
• Finish: Standard SpectraLume© 70% Kynar 500
• Primary Uses: Residential and Light Commercial Projects

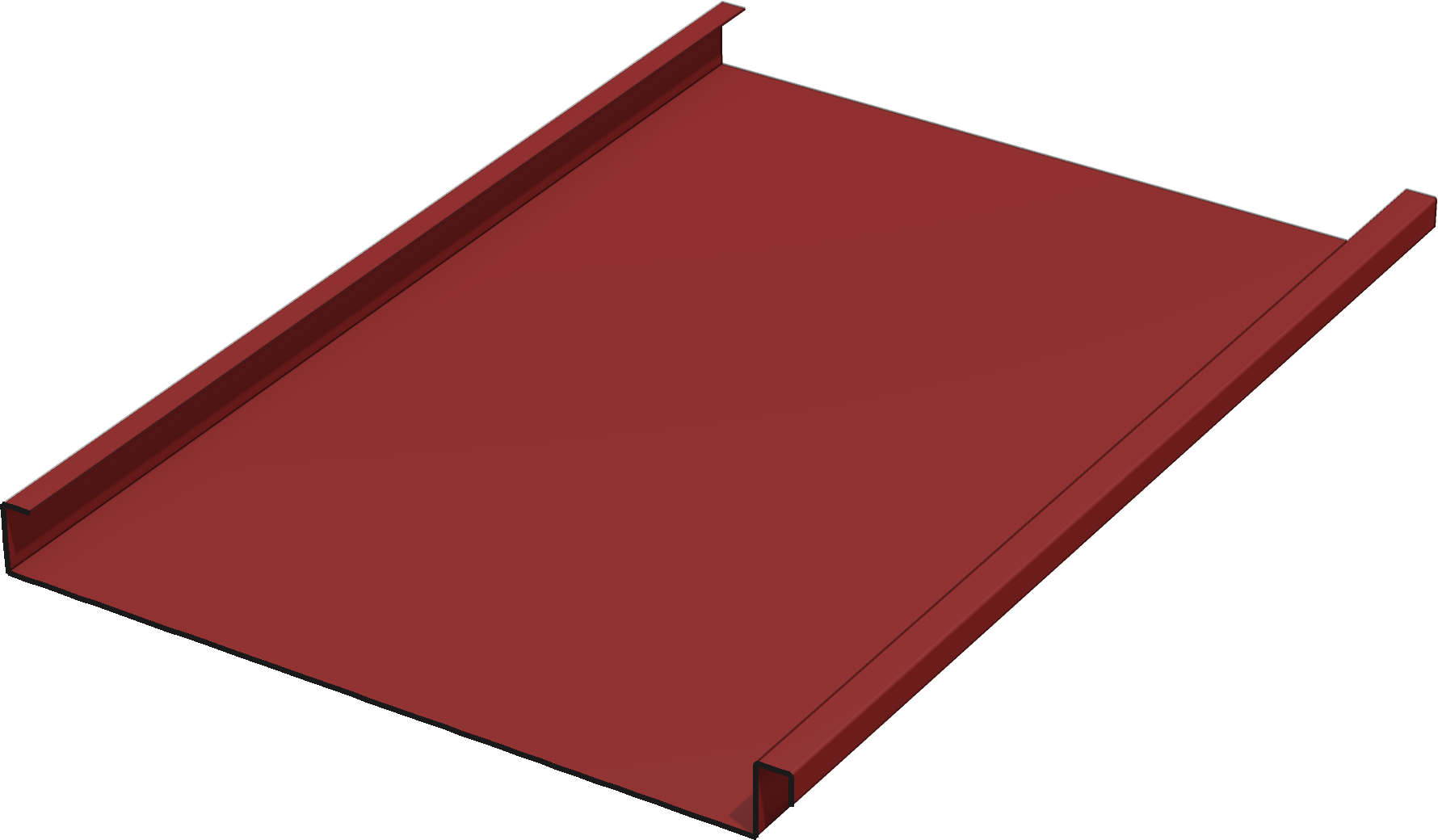

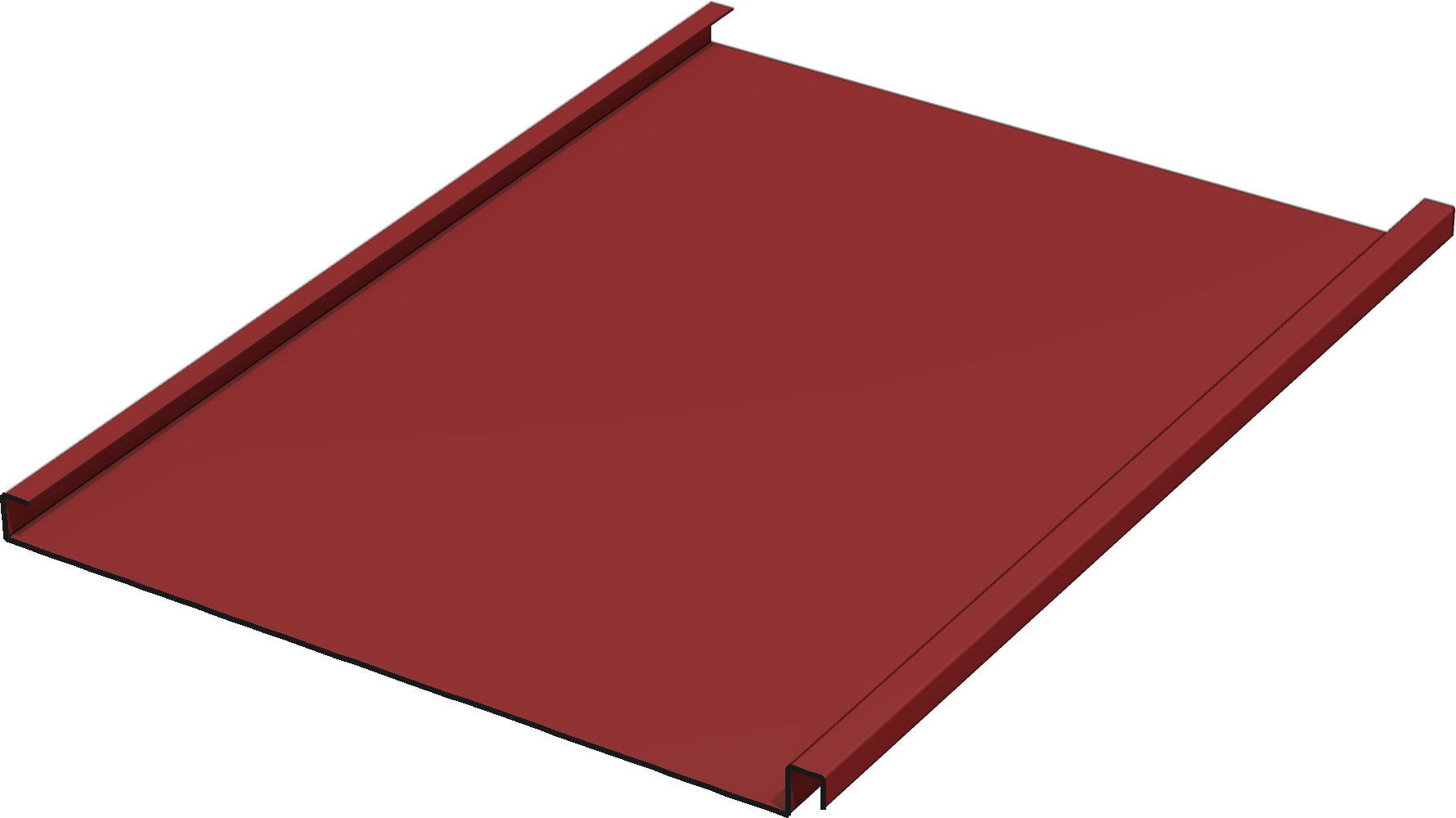

The ASP ML-100 1” high seam and the ASP ML-150 1-½” high seam panels are designed for architectural application over solid decks. These double lock panels are what many people know as a traditional standing seam metal roofing. The ML-100 and ML-150 have mechanical lock profiles and a variety of textures that can be added to the panel such as ribs or striations. Heavy 24ga Galvalume© with a Spectralume© finish gives these panels eye appeal and long life with little or no maintenance. The design of the legs allow simple installation of snow retention systems, signage and other roof mounted products utilizing seam secured brackets.

Specifications:

• Architectural  Detail Capabilities
• Structural
• Mechanical Seam
• Weathertightness Warranties

  Features:

• Panel Widths: 14”, 16” or 18” standard; other widths by quote
• Minimum Slope: 3” / 12”
• Panel Attachment: Concealed Clips
• Panel Base Metal: Galvalume© 24ga. (standard); Aluminum/Copper/Galvanized by quote
• Profile: Smooth, optional Flat Ribs, Pencil Ribs or Striations
• Finish: Standard SpectraLume© 70% Kynar 500
• Sealant: Optional Non-Skinning Isobutyl
• L.: Based on 18” 24ga. Steel Panel or Narrower
• Primary Uses: Residential, Commercial and Light Commercial Projects

The ASP SL-175 panel is designed for architectural or structural application over solid decks or open purlins. The SL-175 has a 1-¾” high snap lock profile and a variety of textures that can be added to the panel such as ribs or striations. Heavy 24ga Galvalume© with a Spectralume© finish gives this easily installed panel eye appeal and long life with little or no maintenance. The vertical design of the legs allow simple installation of snow retention systems, signage and other roof mounted products utilizing seam secured brackets.

ASP, Inc. has completed immense performance panel testing for the 24ga Galvalume© SL-175 profile. This panel will meet or exceed all architectural specifications

Testing:

• ASTM E-1680-95 Air Leakage Test
• ASTM E-1646-95 Water Penetration Test
• ASTM E-1592 Standard Test Method For Structural Performance of Sheet Metal Roof and Siding Systems by Uniform Static Air Pressure Difference
• ASTM E-283-04 Air Leakage Test
• ASTM E-331-00 Water Penetration Test

 Specifications:

• Architectural  Detail Capabilities
• ASTM E-330 Tested
• U-90 Tested
• Structural
• Snap-Lock Seam
• Weathertightness Warranties

 Features:

• Panel Widths: 15”, 16” or 19” Standard (other widths by quote)
• Minimum Slope: 3” / 12”
• Panel Attachment: Concealed Clips
• Panel Base Metal: Galvalume© 24ga. (standard), Aluminum or Galvanized by quote
• Profile: Smooth; optional Flat Ribs, Pencil Ribs or Striations
• Finish: Standard SpectraLume© 70% Kynar 500
• Sealant: Optional Non-Skinning Isobutyl
• Primary Use: Residential and Light Commercial Projects

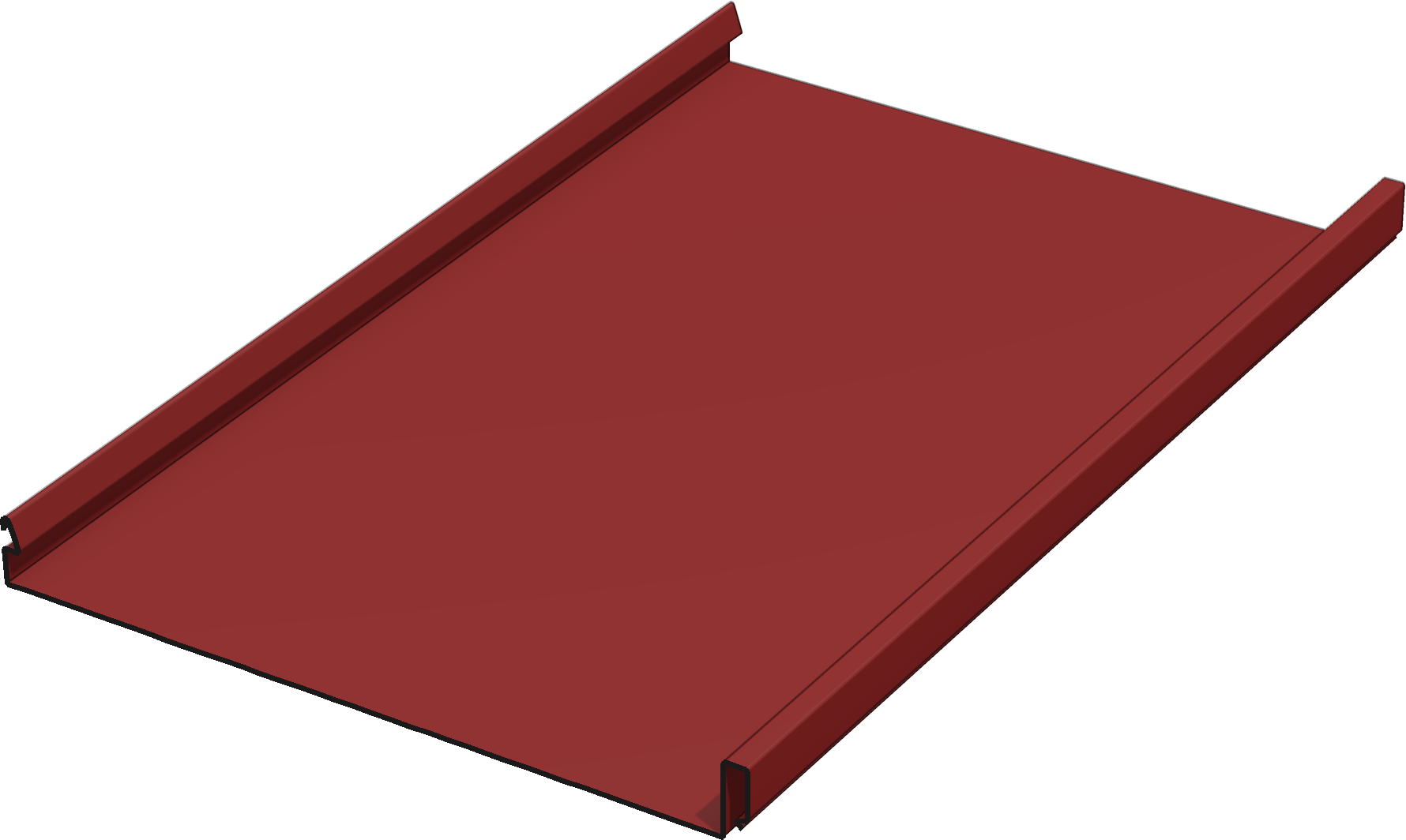

The ASP SL-150 panel is designed for architectural application over solid decks. It has a 1-½” high profile and a variety of textures that can be added to the panel such as ribs or striations. Heavy 24ga Galvalume© with a Spectralume© finish gives this easily installed panel eye appeal and long life with little or no maintenance. The vertical design of the leg allows simple installation of snow retention systems, signage and other roof mounted products utilizing seam secured brackets.

Specifications:

• Architectural  Detail Capabilities
• Structural
• Snap-Lock Seam
• Weathertightness Warranties

Features:

• Panel Widths: 16” and 20” Standard (Other widths by quote)
• Minimum Slope: 3” / 12”
• Panel Attachment: Screws Through Nailing Fin
• Panel Base Metal: Galvalume© 24ga.
• Profile: Smooth, Striations
• Finish: Standard SpectraLume© 70% Kynar 500
• Primary Use: Residential and Light Commercial Projects

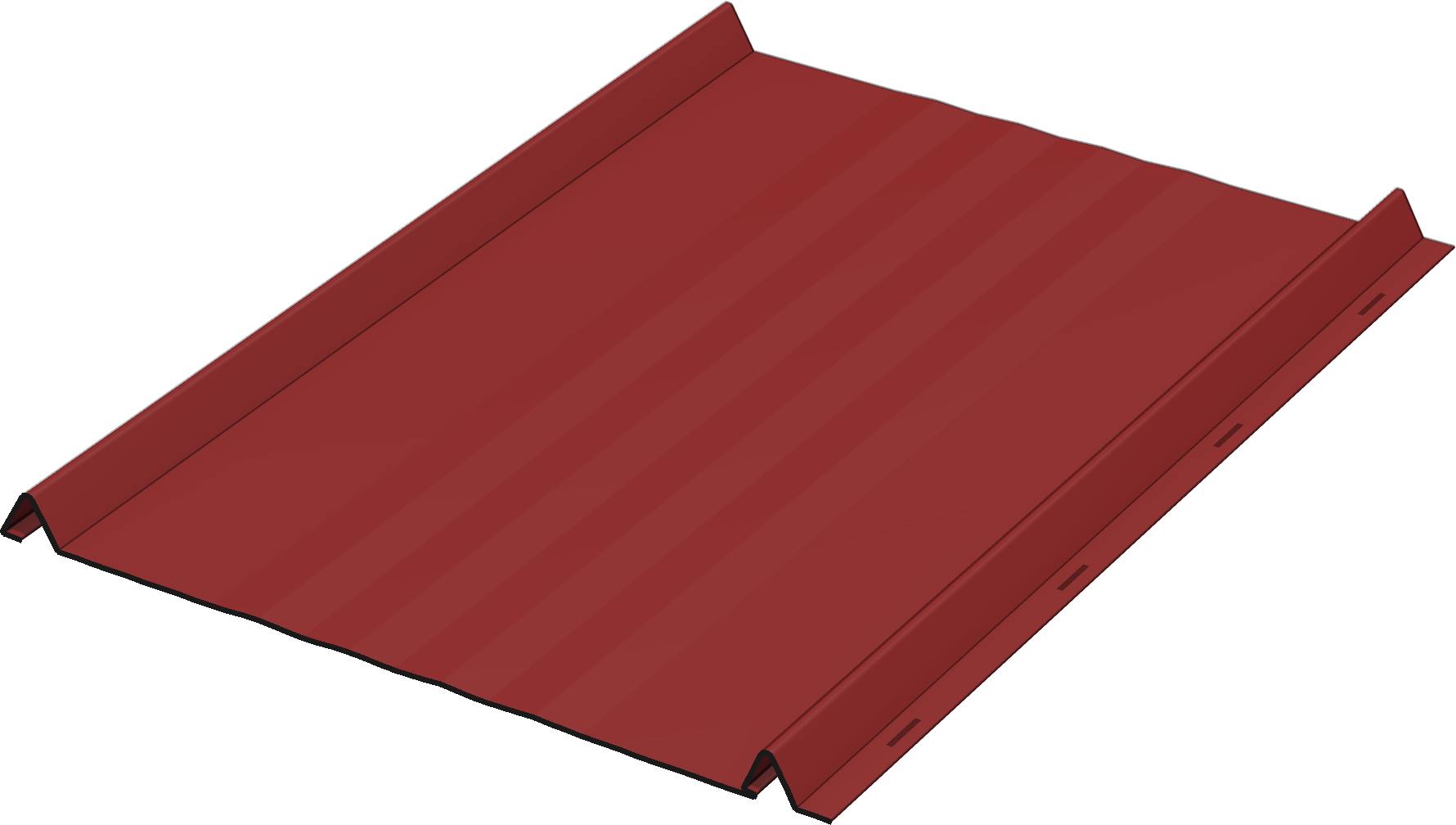

The ASP SL-100 panel is designed for architectural application over solid decks. It has a 1” low seam profile and a variety of textures that can be added to the panel such as ribs or striations. Heavy 24ga Galvalume© with a Spectralume© finish gives this easily installed panel eye appeal and long life with little or no maintenance.

Specifications:

• Architectural  Detail Capabilities
• Snap-Lock Seam
• Weathertightness Warranties

 Features:

• AZ-50 Galvalume
• Panel Width: 16”
• No Exposed Fasteners
• No Holes to Pre-Drill
• Flat Panel with Striations / Easier to Detail Roof
• Faster Application
• Narrower Panels / Easier to Handle
• Contemporary profile with anti-siphon feature for weatherproof sea

          Five Star Customer Rating

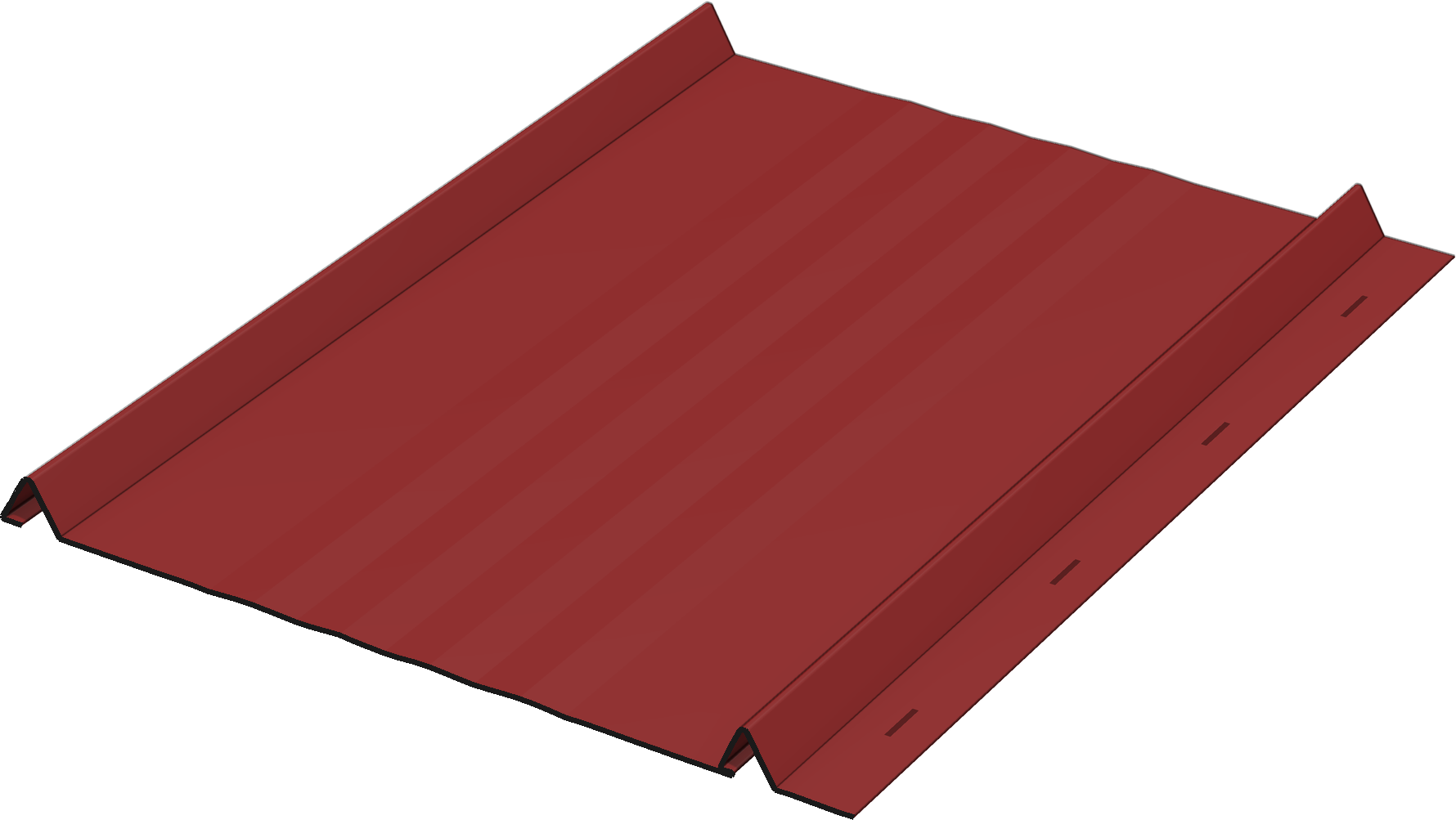

For years Architects, Builders and the Home Owner have appreciated the beauty & durability of a metal roofing system. When price was a concern, the only other alternative was a corrugated utility panel that was not resistant to time and weather damage. NOW…ASP’s “Quick Snap 16©” panel not only looks good, but also makes the best investment for your dollar!

Specifications:

• Architectural  Detail Capabilities
• Snap-Lock Seam
• Weathertightness Warranties
• Slate Blue and Regal White are siliconized polyester paint finishes.
